Auto Feeding Flying Scan Laser Cutting Machine for Printed Fabrics

Model No.: CJGV-180100LD

Introduction:

VisionLASER system is new developed software based on our laser control system. Vision laser cutting machine can automatically recognize and cut printed graphics on the printed fabrics, or process at the specified location according to the position of fabric stripes. It is widely used in garments with stripes & plaids, printed sportswear, jerseys, cycling apparel, knitting vamp, banner, flag, large format printed carpet, etc.

Features

Collocation

Tech Specs

Models

Material & Application

Solution

Request

Vision Laser Cutting Machine for Printed Fabrics

√ Auto feeding           √ Flying scan           √ High speed           Intelligent recognition of printed fabric pattern

VisionLASER system is new developed software based on our laser control system. Vision laser cutting machine can automatically recognize and cut printed graphics on the printed fabrics, or process at the specified location according to the position of fabric stripes. It is widely used in garments with stripes & plaids, printed sportswear, banner, flag, large format printed carpet, etc.

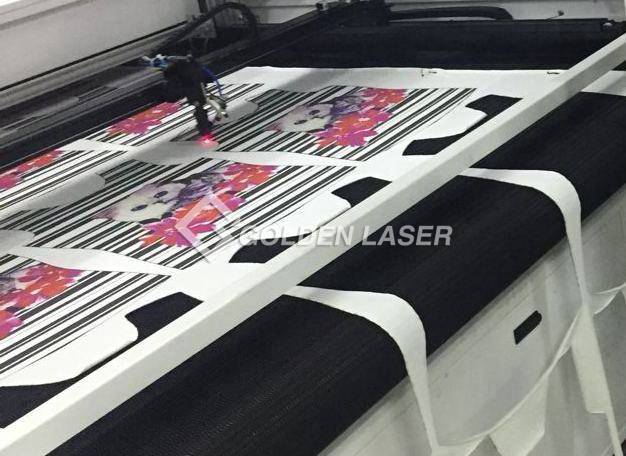

vision laser cut printed polo shirt fabric• Cutting solutions of stretch fabric printed pattern and knitting vamp

Two modes of Vision Laser System

› Contour extraction and cutting

Advantage: software can directly scan and extract graphics contour, no need original drawing.

Suitable for cutting printed graphics with smooth contour.

 Mark point positioning and cutting

Advantage: No limitation on the graphics / Available to cut embedded graphics / Higher precision / Automatically match graphics deformation caused by printing or fabric stretch and wrinkles / Available for printing graphics designs by any design software.

• Comparison to the CCD camera auto-recognition system

VisionLASER Advantage

› High scanning speed, large scanning area.

 Automatically extract graphics contour, no required original drawing.

 Available to cut large format and extra-long graphics.

• Printed Fabric Laser Cutting Application for Sportswear / Cycling Apparel / Swimwear / Knitting Vamp

1. Large format flying recognition. It takes only 5 seconds to recognize the entire working area.  While feeding fabric by the moving conveyor, the real-time camera can help you identify the printed graphics rapidly and submit the results to the laser cutting machine. After cutting the entire working area, this process will be repeated without manual intervention.

2. Good at cutting complex graphics. For example cutting notches. For the fine and detailed graphics, the software can extract the original graphics according to the position of mark points and make cutting. The cutting accuracy reach to ±1mm

3. Good at cutting stretch fabric. Cutting edge is clean, soft and smooth with high precision.

4. Daily output of one machine is 500~800 sets of clothing.

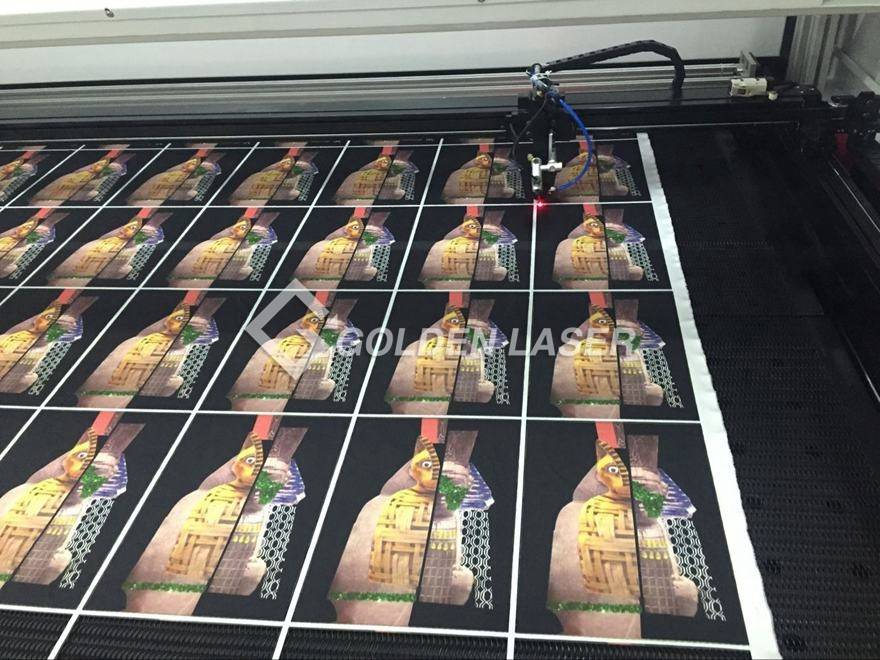

laser cutting printed fabric

Vision Laser Cutter Main Configuration (Optional)

auto feeder

Auto-feeding system

(various types optional)

CO2 RF metal laser tube

CO2 RF metal laser tube

(different laser power optional)

Model No.

CJGV-180100LD Vision Laser Cutter

Laser Type

Co2 glass laser

Co2 RF metal laser

Laser Power

150W

150W

Working Area

1800mmX1400mm (70”×55”)

Working Table

Conveyor working table

Working Speed

0-600 mm/s

Positioning Accuracy

±0.1mm

Motion System

Offline servo motor control system, LCD screen

Cooling System

Constant temperature water chiller

Power Supply

AC220V±5%       50/60Hz

Format Supported

AI, BMP, PLT, DXF, DST, etc.

Standard Collocation

1 sets of top exhaust fan 550W, 2 sets of bottom exhaust fans 1100W,

2 German cameras

Optional Collocation

Automatic feeding system

Environmental Requirement

Temperature Range: 10—35℃

Humidity Range: 40—85%

the use environment of no inflammable, explosive, strong magnetic, strong earthquake

*** Note: As products are constantly updated, please contact us for the latest specifications. ***

GOLDEN LASER - Vision Laser Cutting Machines Model NO. Working Area
CJGV-160130LD 1600mm×1300mm (63” ×51”)
CJGV-160200LD 1600mm×2000mm (63” ×78”)
CJGV-180100LD 1800mm×1000mm (70” ×39”)
CJGV-180120LD 1800mm×1200mm (70” ×47”)
CJGV-180140LD 1800mm×1400mm (70” ×55”)
CJGV-300500LD 3000mm×5000mm (118” ×197”)
CJGV-320800LD 3200mm×8000mm (118” ×315”)

Applicable Industries

→ Printing industry – printed apparel, banners, flags, toys, carpets. etc.

→ Garment industry – top grade clothing, shirts, suits, skirts with stripes / plaids, plaids or repeated patterns

→ Shoes industry – weaving sports shoes, knitting vamp

→ Furniture industry – sofa, pillowcase, tablecloth with aligned stripes & plaids

→ Top grade bags and suitcases – bags, suitcases, wallets with aligned stripes & plaids

Vision Laser CUT Applications

printed sublimation  sportswear cutting

Printed sportswear cutting

swimsuit cutting

Swim suit cutting

stripes plaids shirt cutting

Stripes & plaids shirt cutting

Repetitive Visual Motifs Cutting

women fashion

Fashion Apparel

handbag

Handbag

suitcase

Suitcase

Shoes industry

Soft toy industry

shoe industry 2shoe industry 1

soft toy industry 1soft toy industry

1. On the fly – large format recognition continuous cutting

This function is for patterned fabric precisely positioning and cutting. For example, through digital printing, various graphics printed on fabric. In the subsequent of positioning and cutting, material information extracted by the high-speed industrial camera (CCD), software smart identification closed outer contour graphics, then automatically generates the cutting path and finish cutting. Without the need for human intervention, it can achieve continuous recognition cutting of the entire roll printed fabrics. I.e. by large format visual recognition system, the software automatically recognize the contour pattern of the garment, and then automatic contour cutting graphics, thus ensuring accurate cutting of the fabric. Advantage of contour detection

  • No required the original graphics files
  • Directly detect roll printed fabrics
  • Automatic without manual intervention
  • Identification within 5 seconds on the whole cutting area

large format recognition continuous cutting

2. Printed Marks Cutting

This cutting technology is applicable to a variety of patterns and labels precision cutting. Especially suitable for automatic continuous printing clothing contour cutting. Marker point positioning cutting no pattern size or shape restrictions. Its positioning is only associated with two Marker points. After two Marker points to identify the location, entire format graphics can be precisely cut. (Note: arrangement rules must be the same for each format of the graphic. Automatic feeding continuous cutting, to be equipped with feeding system.) Advantage of printed marks detection

  • High precision
  • Unlimited for the distance between printed pattern
  • Unlimited for printing design and background color
  • Compensation of processing material deformation

Printed Marks Cutting

3. Strips and Plaids Cutting

CCD camera, which is installed in the rear of the cutting bed, can recognize materials information such as stripes or plaids according to color contrast. The nesting system can perform automatic nesting according to the identified graphical information and cut pieces requirement. And can automatically adjust the pieces angle to avoid stripes or plaids distortion on the feeding process. After nesting, the projector would emit red light to mark the cutting lines on materials for calibration.

Stripes and Plaids Cutting

4. Square Cutting

If you only need to cut square and rectangle, if you don’t have high requirement about cutting precision, you can choose below system. Work flow: small camera detect the printing marks and then laser cut the square/rectangle.

<< Read More about Vision Laser Cutting Solution
