Automatic Laser Cutter with CCD Camera and Roll Feeder

Model No.: ZDJG-3020LD

Introduction:

  • CO2 Laser power from 65 watts to 150 watts
  • Suitable for cutting ribbons and labels in roll of the width within 200mm
  • Full cutting from the roll to pieces
  • CCD camera to recognize the label shapes

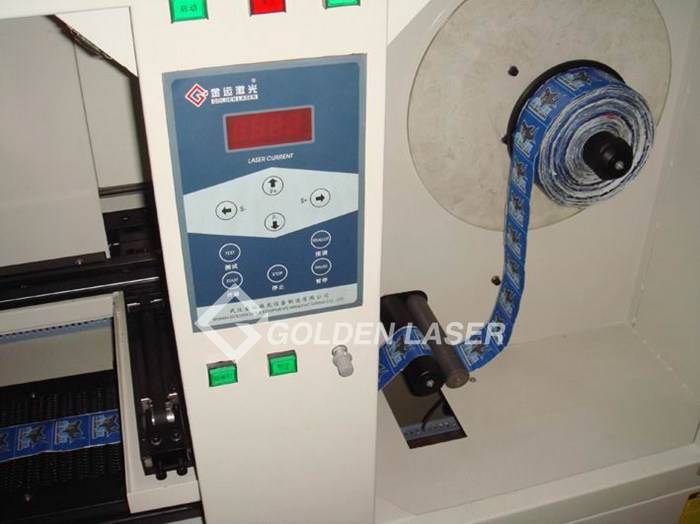

  • Conveyor working table and roll feeder – Automatic and continuous processing

Equipped with CCD camera, conveyor bed and roll feeder, ZDJG3020LD Laser Cutting Machine is designed to cut woven labels and ribbons from roll to roll that ensures extreme precision cutting, particularly suitable for making emblems with a perfect perpendicular cut edge.

It is ideal for working on different types of materials, such as woven labels, woven and printed ribbons, artificial leather, textile, paper and synthetic materials.

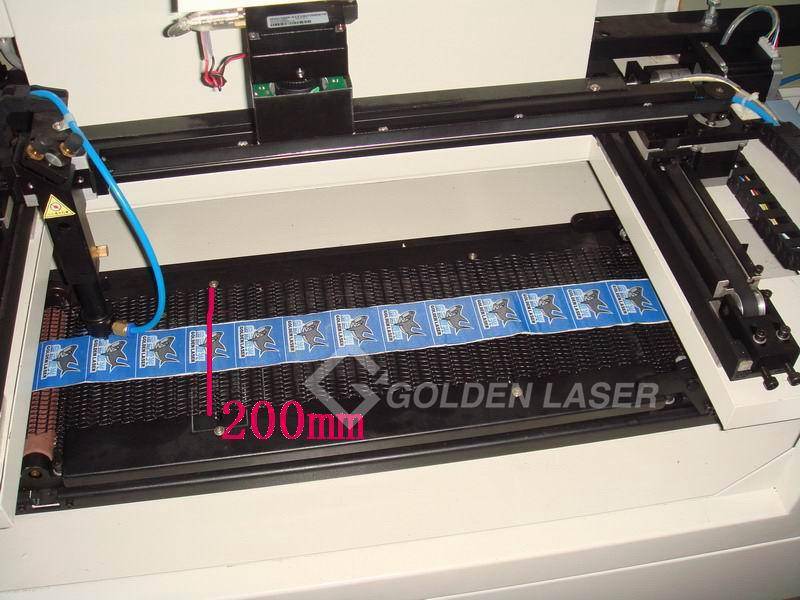

The working area is 300mm×200mm. Suitable for cutting roll materials within 200mm in width.

Specifications

Main Technical Specifications of ZDJG-3020LD CCD Camera Laser Cutter

Laser Type CO2 DC glass laser tube
Laser Power 65W / 80W / 110W / 130W / 150W
Working Area 300mm×200mm
Working Table Conveyor working table
Positioning Accuracy ±0.1mm
Motion System Step motor
Cooling System Constant temperature water chiller
Exhaust System 550W or 1100W Exhaust system
Air Blowing Mini air compressor
Power Supply AC220V±5% 50/60Hz
Graphic Format Supported PLT, DXF, AI, BMP, DST

Machine Features

Enclosed design, in line with CE standards. The laser machine combines mechanical design, safety principles and international quality standards.

The laser cutting system is specially designed for continuous and automatic processing of roll labels cutting or roll textile materials slitting.

The laser cutter adopts CCD camera recognition system with large single view scope and good recognition effect.

According to the processing needs, you can choose continuous automatic recognition cutting function and positioning graphics cutting function.

The laser system overcomes the problems of roll label position deviation and distortion caused by tension of roll feeding and rewinding. It enables roll feeding, cutting and rewinding at one time, achieving fully automated processing.

Laser Cutting Benefits

High production speeds

No tooling to develop or maintain

Sealed edges

No distortion or fraying of fabric

Accurate dimensions

Fully automated production

Applicable Materials and Industries

Suitable for woven label, embroidered label, printed label, Velcro, ribbon, webbing, etc.

Natural and synthetic fabrics, polyester, nylon, leather, paper, etc.

Applicable to clothing labels and clothing accessories production.

Some Laser Cutting Samples

We are always bringing you simple, fast, individualized and cost-effective laser processing solutions.

Just using GOLDENLASER Systems and enjoying your production.

Technical Parameters

Model NO. ZDJG3020LD
Laser Type CO2 DC glass laser tube
Laser Power 65W 80W 110W 130W 150W
Working Area 300mm×200mm
Working Table Conveyor working table
Positioning Accuracy ±0.1mm
Motion System Step motor
Cooling System Constant temperature water chiller
Exhaust System 550W or 1100W Exhaust system
Air Blowing Mini air compressor
Power Supply AC220V±5% 50/60Hz
Graphic Format Supported PLT, DXF, AI, BMP, DST
External Dimensions 1760mm(L)×740mm(W)×1390mm(H)
Net Weight 205KG

*** Note: As products are constantly updated, please contact us for the latest specifications. ***

GOLDENLASER MARS Series Laser Systems Summary

1. Laser Cutting Machines with CCD Camera

Model No. Working area
ZDJG-9050 900mm×500mm (35.4”×19.6”)
MZDJG-160100LD 1600mm×1000mm (63”×39.3”)
ZDJG-3020LD 300mm×200mm (11.8”×7.8”)

2. Laser Cutting Machines with Conveyor Belt

Model No.

Laser head

Working area

MJG-160100LD

One head

1600mm×1000mm

MJGHY-160100LD II

Dual head

MJG-14090LD

One head

1400mm×900mm

MJGHY-14090D II

Dual head

MJG-180100LD

One head

1800mm×1000mm

MJGHY-180100 II

Dual head

JGHY-16580 IV

Four head

1650mm×800mm

  3. Laser Cutting Engraving Machines with Honeycomb Working Table

Model No.

Laser head

Working area

JG-10060

One head

1000mm×600mm

JG-13070

One head

1300mm×700mm

JGHY-12570 II

Dual head

1250mm×700mm

JG-13090

One head

1300mm×900mm

MJG-14090

One head

1400mm×900mm

MJGHY-14090 II

Dual head

MJG-160100

One head

1600mm×1000mm

MJGHY-160100 II

Dual head

MJG-180100

One head

1800mm×1000mm

MJGHY-180100 II

Dual head

  4. Laser Cutting Engraving Machines with Table Lifting System

Model No.

Laser head

Working area

JG-10060SG

One head

1000mm×600mm

JG-13090SG

1300mm×900mm

Applicable materials and industries

Suitable for woven label, embroidered label, printed label, Velcro, ribbon, webbing, etc.

Natural and synthetic fabrics, polyester, nylon, leather, paper, fiberglass, Aramid, etc.

Applicable to clothing labels and clothing accessories production.

Laser Cutting Samples

labels laser cutting samples

labels ribbon webbing cutting laser
