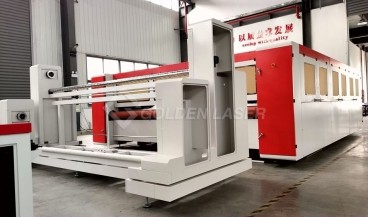

Filter Cloth Laser Cutting Machine

Model No.: JMCCJG-350400LD

Introduction:

High precision rack and pinion. Cutting speed up to 1200mm/s, the ACC up to 8000mm/s2, maintain long-term stability. World-class CO2 metal RF lasers. Vacuum conveyor working table. Automatic feeding, tension correction, for continuous feeding and cutting.


  • Laser type : CO2 RF laser
  • Laser power : 150W, 300W, 600W, 800W
  • Working area : 3500mm x 4000mm
  • Application : Filter materials and industrial fabrics laser cutting
  • Laser type: CO2 RF laser
  • Laser power: 150W, 300W, 600W, 800W
  • Working area: 3500mm x 4000mm
  • Application: Filter materials and industrial fabrics laser cutting
  • Laser Cutting Machine for Filter Cloth Production

    JMC SERIES CO2 Laser Cutter - High Precision, Fast, Highly Automated

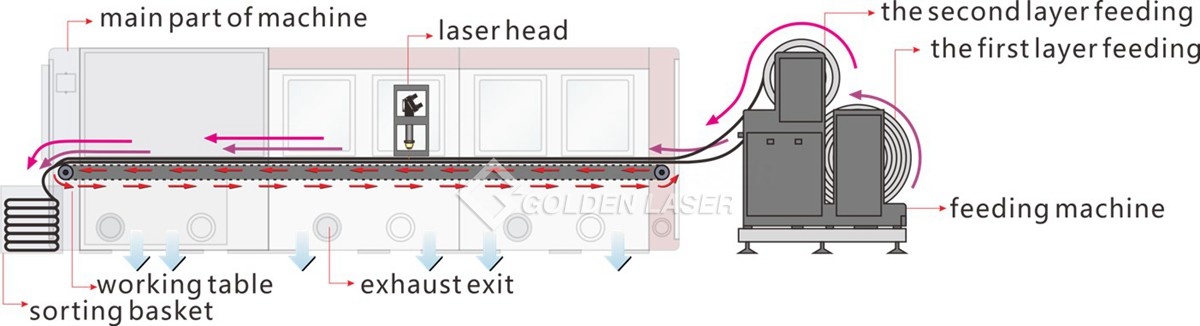

    Laser automatic processing flow

    Our high-standard manufacturing of CO2 laser cutting machines, multi-functional expansion, configuration of automatic feeding and sorting systems, research and development of practical software... All in order to provide customers with high production efficiency, optimized production process, saving economic costs and time costs, and maximize the benefits.
    laser automatic processing

    Quick Specifications

    Main Technical Parameter of JMCCJG350400LD Industrial CO2 Laser Cutting Machine
    Laser type CO2 RF laser tube
    Laser power 150W / 300W / 600W / 800W
    Working Area 3.5m×4m (137"×157")
    Working table Vacuum conveyor working table
    Motion system Gear and rack driven, Servo motor
    Cutting speed 0-1,200mm/s
    Acceleration 8,000mm/s2
    Repeat positioning accuracy ±0.03mm
    Positioning accuracy ±0.05mm
    Format supported PLT, DXF, AI, DST, BMP
    Power supply AC380V±5% 50/60Hz 3Phase

    Superiorities of JMC Series CO2 Laser Cutter Machine

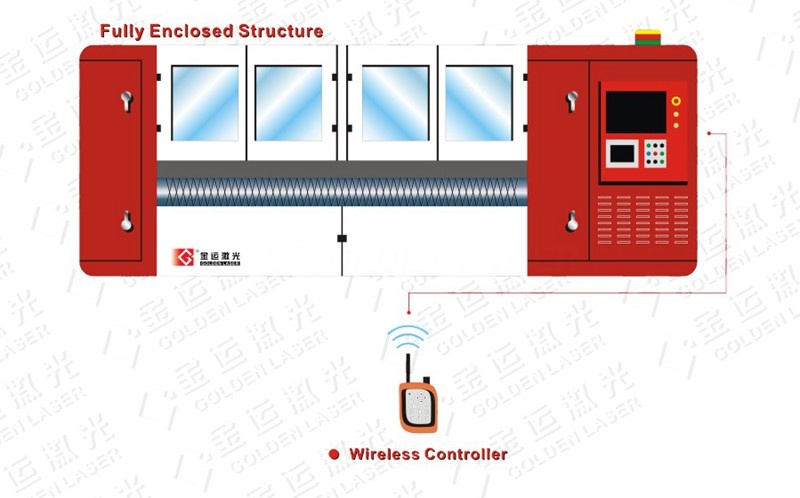

    1. Fully enclosed structure

    Large format laser cutting bed with fully enclosed structure to ensure the cutting dust does not leak, suitable for operation in the intensive production plant.

    In addition, the user-friendly wireless handle can realize remote operation.

    Fully enclosed structure

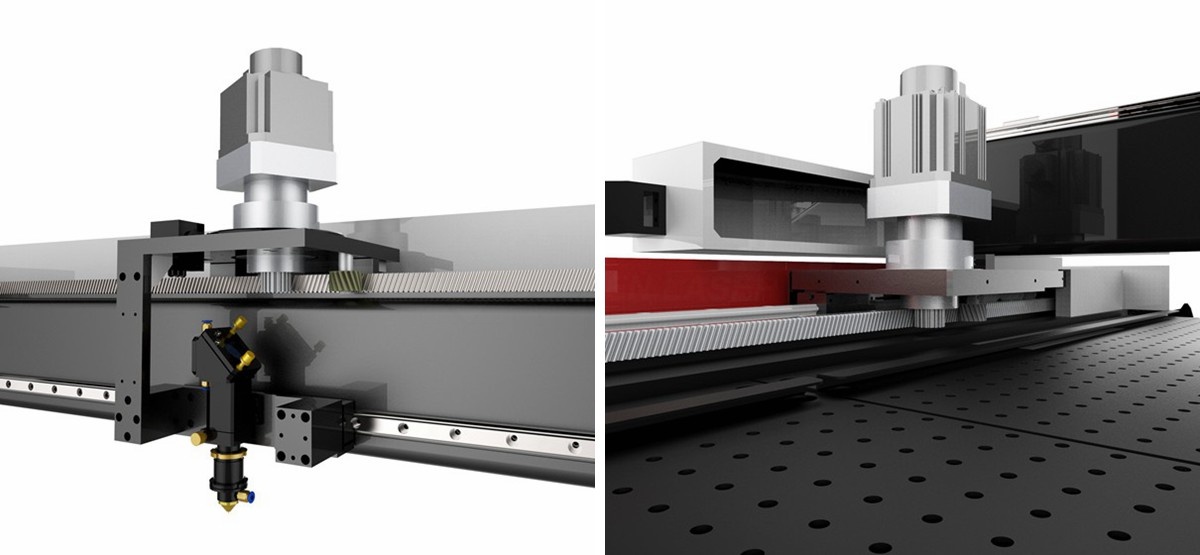

    2. Gear & Rack driven

    High-precision Gear & Rack driving system. High speed. Cutting speed up to 1200mm/s, acceleration 8000mm/s2, and can maintain long-term stability.

    • High level of precision and repeatability.
    • Ensure excellent cutting quality.
    • Durable and powerful. For your 24/7h production‎.
    • Service life longer than 10 years.
    gear and rack driving

    3. Feeding system

    Auto-feeder specification:

    • The width of single roller range from 1.6 meters ~ 8 meters; the maximum diameter of roll is 1 meter; Affordable weight up to 500 KG
    • Auto-induction feeding by cloth inductor; Right-and-left deviation correction; Material positioning by edge control

    Precision tension feeding

    No tension feeder will easy to distort the variant in the feeding process, resulting the ordinary correction function multiplier;

    Tension feeder in a comprehensive fixed on both sides of the material at the same time, with automatically pull the cloth delivery by roller, all process with tension, it will be perfect correction and feeding precision.

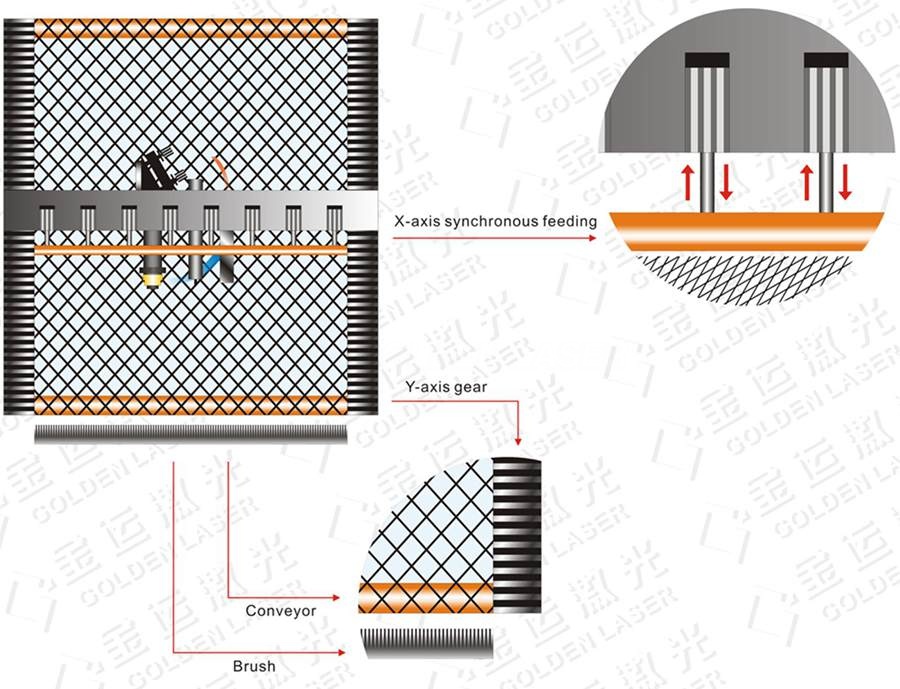

    X-axis synchronous feeding

    4. Exhaust and filter units

    Advantages

    • Always achieve maximum cutting quality

    • Different materials apply to different working tables

    • Independently control of the upward or downward extraction

    • Suction pressure throughout the table

    • Ensure optimal air quality in the production environment

    5. Marking systems

    marking systems

    According to customer requirements, a contactless ink-jet printer device and a mark pen device can be installed on the laser head to mark the filter material, which is convenient for later sewing.

    Functions of ink-jet printer:

    1. Mark figures and cut edge accurately

    2. Number off-cut
    Operators can mark on off-cut with some information such as off-cut size and mission name

    3. Contactless marking
    Contactless marking is the best choice for sewing. The precise location lines make subsequent work more easily.

    6. Customizable cutting areas

    2300mm×2300mm (90.5in×90.5in), 2500mm×3000mm (98.4in×118in), 3000mm×3000mm (118in×118in), 3500mm×4000mm (137.7in×157.4in) Or other options. The largest working area is up to 3200mm×12000mm (126in×472.4in)

    customizable cutting areas

    Filter materials cut by laser

    Filtration as an important environmental and safety control process generally sorted as gas-solid separation, gas-liquid separation, solid-liquid separation, solid-solid separation. Usually laser processing filter cloth is mainly made of technical textile.

    It costs much time by traditional processing such as die cutting and CNC cutting. On one hand, traditional cutting always cause rough edges which affect next steps. On the other hand, long time cutting cause tool wear, and it cost time to replace them. Besides, die cutting need preparing die tools. But laser processing could almost avoid all these defects, processing design figures freely by very easy adjustment.

    Filter materials (filter fabrics and filter mats) suitable for laser cutting:

    Polyester, Polypropylene (PP), Polyurethane (PU), Polyethylene (PE), Polyamide (Nylon), Filter Fleece, Foam, Nonwoven, Paper, Cotton, PTFE, Fiberglass (fiberglass, glass fiber) and other industrial fabrics.

    Explore more information about laser solutions for filters?

    We would be glad to advise you on the laser cutting of filter materials, on our laser machines and special options for filter machining.

    Technical Parameter of the CO2 Laser Cutting Machine

    Laser type CO2 RF laser tube
    Laser power 150W / 300W / 600W / 800W
    Cutting Area 3.5m×4m (137″×157″)
    Working table Vacuum conveyor working table
    Motion system Gear and rack driven, Servo motor
    Cutting speed 0-1,200mm/s
    Acceleration 8,000mm/s2
    Lubrication system Automatic lubrication system
    Fume extraction system Specialized connection pipe with N centrifugal blowers
    Cooling system Processional original water chiller system
    Laser head Processional CO2 laser cutting head
    Control Offline controlling system
    Repeat positioning accuracy ±0.03mm
    Positioning accuracy ±0.05mm
    Min. kerf 0.5~0.05mm (depending on material)
    Total power ≤25KW
    Format supported PLT, DXF, AI, DST, BMP
    Power supply AC380V±5% 50/60Hz 3Phase
    Certification ROHS, CE, FDA
    Options Auto-feeder, Red dot positioning, Marking system, Galvo system, Double heads, CCD camera

    Main Components and Parts

    Article Name Qty Origin
    Laser tube 1 set Rofin (Germany) / Coherent (USA) / Synrad (USA)
    Focus lens 1 pc II IV USA
    Servo motor and driver 4 sets YASKAWA (Japan)
    Rack and pinion 1 set Atlanta
    Dynamic focus laser head 1 set Raytools
    Gear reducer 3 sets Alpha
    Control system 1 set GoldenLaser
    Liner guide 1 set Rexroth
    Automatic lubricating system 1 set GoldenLaser
    Water chiller 1 set GoldenLaser

    JMC Series Laser Cutting Machine Recommended Models

    JMCCJG-230230LD. Working Area 2300mmX2300mm (90.5 inch×90.5 inch)  Laser Power: 150W / 300W / 600W / 800W CO2 RF Laser

    JMCCJG-250300LD. Working Area 2500mm×3000mm (98.4 inch×118 inch)  Laser Power: 150W / 300W / 600W / 800W CO2 RF Laser

    JMCCJG-300300LD. Working Area 3000mmX3000mm (118 inch×118 inch)  Laser Power: 150W / 300W / 600W / 800W CO2 RF Laser … …

    JMC laser cutter customized working areas

    Application Materials

    Filtration fabrics, filter cloth, glass fiber, non-woven fabric, paper, foam, cotton, polypropylene, polyester, PTFE, polyamide fabrics, synthetic polymer fabrics, nylon and other industrial fabrics.

    Samples of Laser Cutting Filter Media

    laser cut filter cloth samples

     << View more samples of laser cutting filter materials
